Blue Star V Series 1.5 Ton 3 Star Inverter Split AC (5-in-1 Convertible, Smart Voice Command, Copper Condenser)

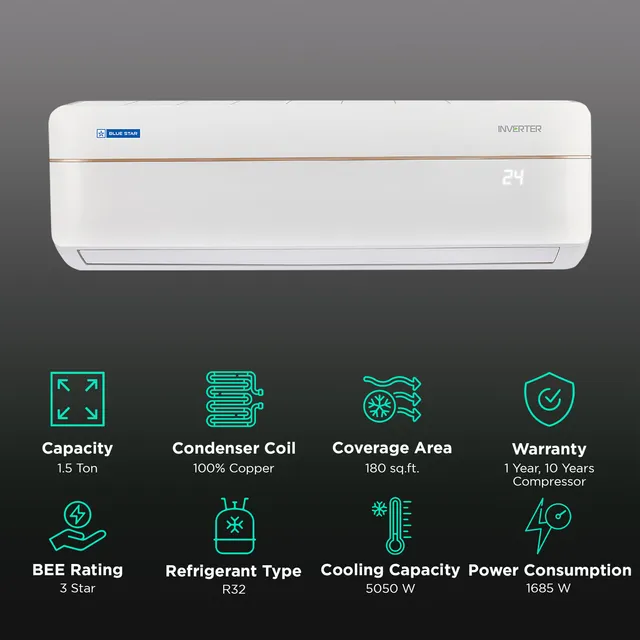

❄️ Product Overview

Model: IC318VNUS – Inverter Split AC
Type: Split Inverter Air Conditioner
Tonnage: 1.5 Ton
Star Rating: 3 Star
Technology: Inverter Rotary Compressor
Country of Origin: India
Manufacturer: Blue Star Ltd., Mumbai

⚡ Performance & Efficiency

• Cooling Capacity: 5050 W (Min 1542 ~ Max 5100)

• Cooling Capacity (BTU/hr): 17230

• Cooling at 50% Load: 2525 W

• ISEER Rating: 3.81

• Cooling Power Input: 1685 W

• Power Input at 50% Load: 615 W

• Electricity Consumption (1600 hrs/year): 1026.46 Units

• Rated Voltage/Frequency/Phase: 230V / 50Hz / Single

• Nominal Current: 7.37 Amps

🌬️ Air Flow & Noise

• Air Flow Volume (CFM): High: 617 / Medium: 514 / Low: 450 / Very Low: 415

• Indoor Noise Levels (dB): High: 51 / Medium: 48 / Low: 45 / Silent: 39

• Outdoor Noise Level (dB): 60

• Moisture Removal: 1.65 Litres/Hour

🧊 Build & Components

• Compressor Type: Inverter Rotary with Acoustic Jacket

• Refrigerant Type: R32

• Refrigerant Quantity: 0.65 kg

• Condenser Type: 100% Copper

• Ambient Temperature Support: Up to 52°C

📐 Dimensions & Weight

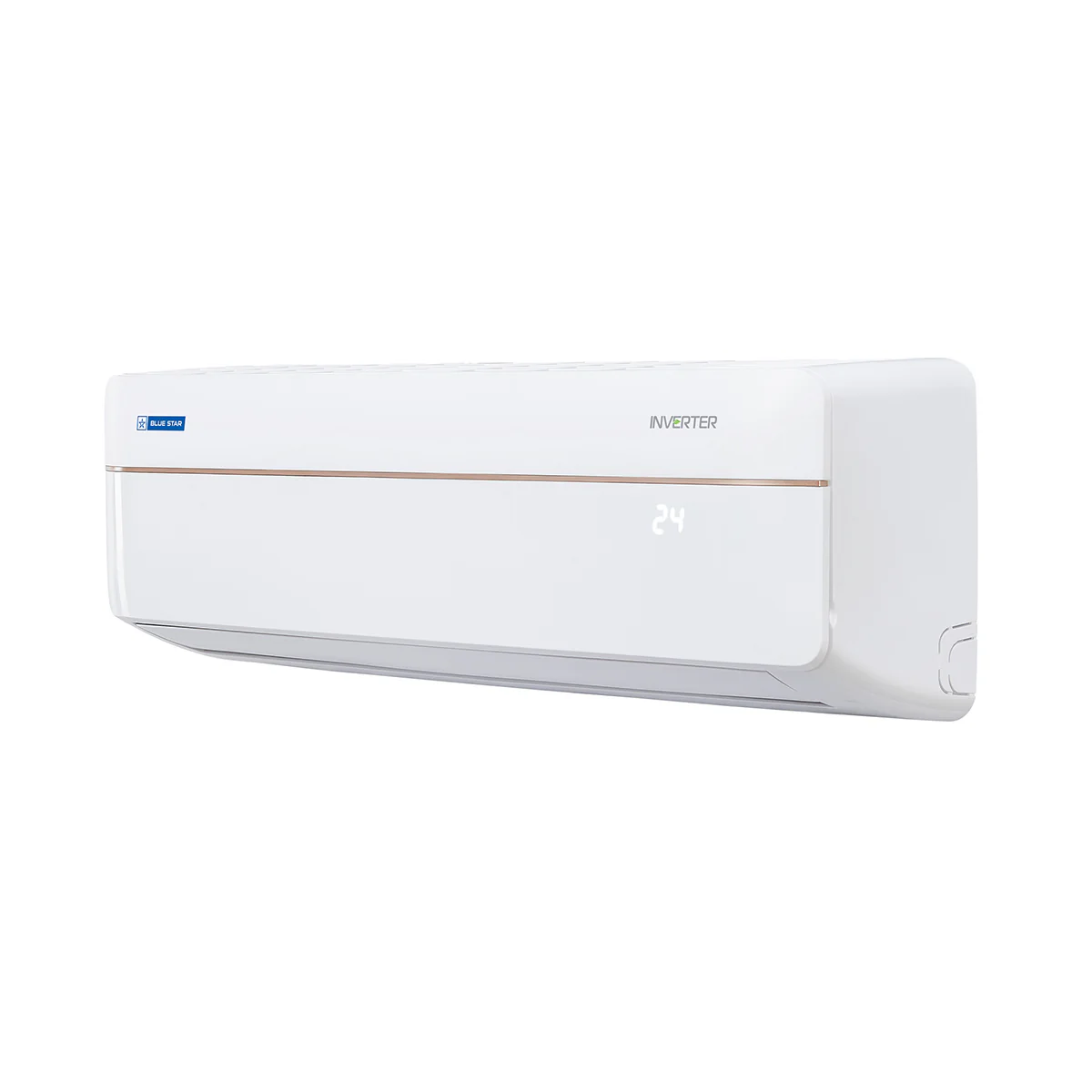

• Indoor Unit (IDU) Size: 975 x 230 x 321 mm (W x D x H)

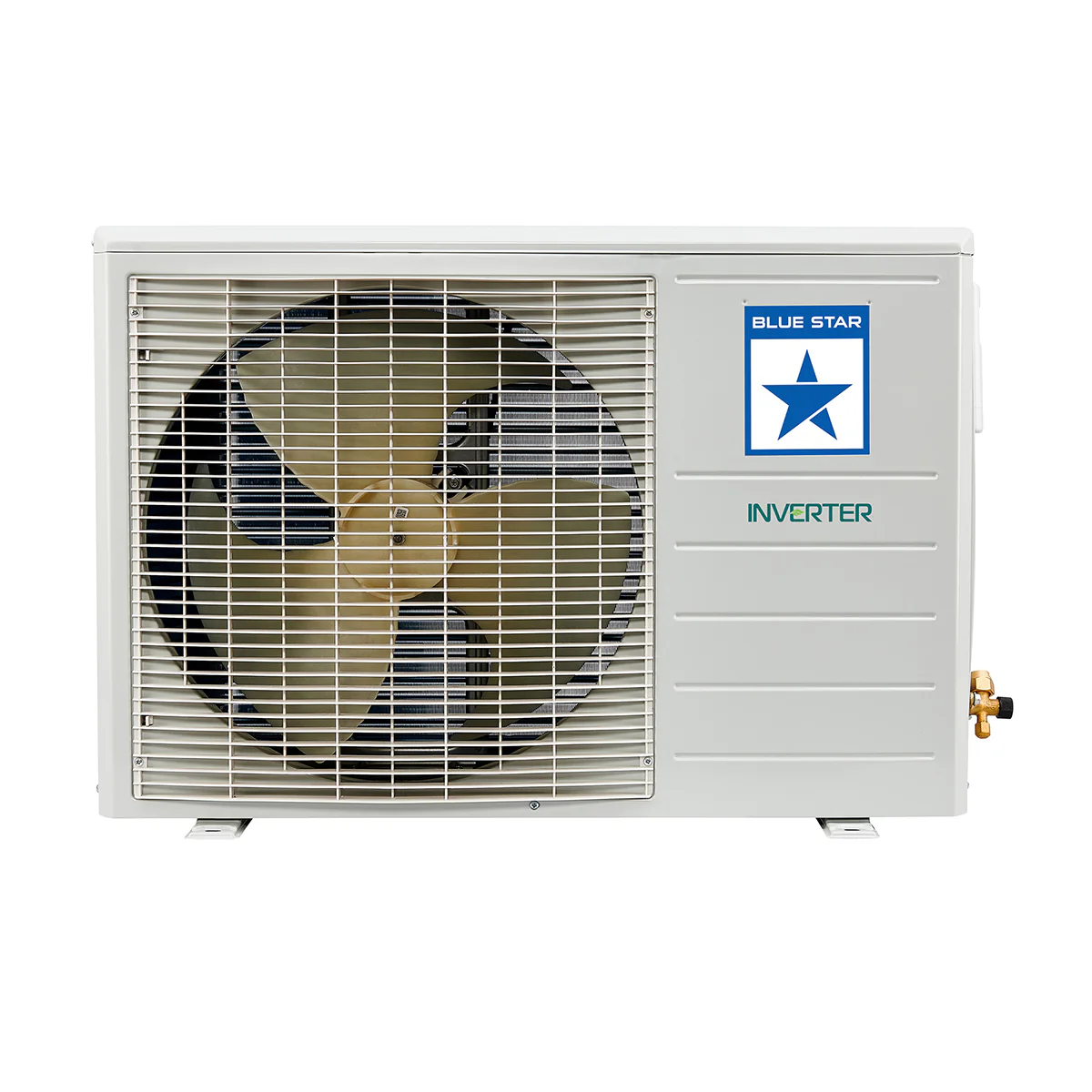

• Outdoor Unit (ODU) Size: 858 x 327 x 536 mm

• Net Weight – IDU: 12 kg

• Net Weight – ODU: 25 kg

• Gross Weight – IDU: 13.1 kg

• Gross Weight – ODU: 28.7 kg

🔌 Installation & Connectivity

• Suction Tube Outer Diameter: 1/2″ (12.7 mm)

• Liquid Tube Outer Diameter: 1/4″ (6.35 mm)

• Additional Refrigerant Charge (Beyond 4M): 15 g/m

• Power Supply to ODU: 4 Core x 1.5 sqmm

• Power Supply to IDU: 3 Core x 1.5 sqmm

• Input Power Supply: IDU

📦 Accessories & Features

• Remote Control: LCD Remote with Display

• Remote Battery Type: AAA

• Night Glow Remote Buttons: Yes

• Included in the Box:

  • Indoor Unit

  • Outdoor Unit

  • Copper Tube (3 meters)

  • Interconnecting Wire (3.5 meters)

  • Remote Control

  • User Manual
